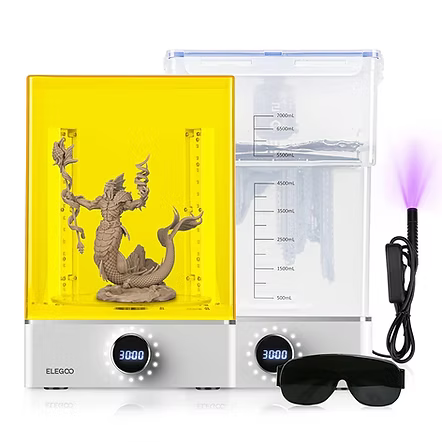

ELEGOO Mercury XS Bundle Washing and Curing Station

Mercury XS Wash Machine

• Control Method: Knob + Button

• Rated Power: 12 W

• Input Voltage: 110–240 V, 50/60 Hz

• Timer: 0–30 minutes

• Dimensions (W × D × H): 255 × 155 × 385.5 mm

• Weight: 2.27 kg

• Maximum Wash Volume:

  • With platform: 180 × 121 × 153 mm

  • Without platform: 201 × 124 × 255 mm

• Washing Tank Capacity: ~7 L (minimum ~2.5 L)

• Features: Rubber-sealed tank, powerful turbine blade to reduce splashing, two cleaning modes (basket washing or hanging the build plate directly).

Mercury XS Cure Machine

• Control Method: Knob + Button

• Rated Power: 36 W

• Input Voltage: 110–240 V, 50/60 Hz

• Timer: 0–30 minutes

• Dimensions (W × D × H): 246 × 230 × 363.5 mm

• Weight: 2.4 kg

• Maximum Curing Volume: 200 × 260 mm

• Curing System:

  • 360° exposure via two L-shaped UV LED light bars (14 LEDs each)

  • Four additional LEDs under a rotating turntable

  • Fresnel lens for uniform light distribution

  • Includes handheld UV lamp (pen-style) for spot curing

• Safety: UV-blocking cover (blocks 99.9% of UV light), auto-off when cover is lifted.

Bundle Contents

• Mercury XS Wash machine with 7 L sealed tank

• Mercury XS Cure machine with UV cover

• Washing basket and build plate holder

• Rotating curing turntable

• Two L-shaped UV light bars

• Handheld UV lamp and protective goggles

• Power adapter and user manual

Notes & Usage Tips

• Compatible with Elegoo Mars, Saturn, and similar-size resin printers.

• For larger printers (like Saturn 4 or Jupiter), the platform must be removed before washing.

• Avoid curing too long to prevent yellowing of prints.

• Do not run continuously for more than ~40 minutes to avoid overheating.

• Always use protective goggles with the handheld UV lamp.
